LED Enclosure Lights

LED Enclosure Lights

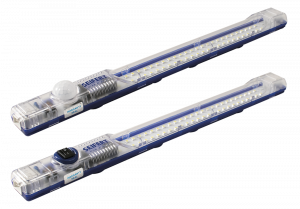

Our StripLite LED enclosure lights have been especially designed to meet the criteria of illuminating control cabinets. They are available with an integrated On/Off switch or motion sensor. Our 400 Lm version has a universal voltage range (24 to 265 V) with one model. The more powerful 700 Lm version has a voltage range from 120 to 230 V AC. These strip lights are designed to be daisy-chained together for additional illumination. StripLite is energy efficient and maintenance free.

For more information on StripLite LED enclosure lights, download the brochure.

Please note that the light fittings are supplied without connector and without cable. These need to be ordered separately!

Click on model number to view information specific to that unit.

Model Voltage & Phase Power Consumption (W) Cable Length (in.) Description Mounting (in.) Data Sheet CAD Package Manual
400000 24-265 DC/AC 5 - Lights: 400Lm Magnets, clips
400100 24-265 DC/AC 5 - Lights: 400Lm Magnets, clips
400400 24-265 DC/AC 5 - Lights: 400Lm Magnets, clips
400500 24-265 DC/AC 5 - Lights: 400Lm Magnets, clips
400076 120-230 AC 8 - Lights: 700Lm Magnets, clips
400176 120-230 AC 8 - Lights: 700Lm Magnets, clips
400012 12 DC 4 - Lights: 300Lm Magnets, clips Data Coming
400112 12 DC 4 - Lights: 300Lm Magnets, clips Data Coming
400702 max. 250 AC 0 - Female connector Screw connection Data Coming
400703 max. 250 AC 0 - Male connector Screw connection Data Coming
400711 max. 250 AC 0 118 Pwr. cable - white Plug Data Coming Data Coming
400712 max. 250 AC 0 118 Pwr. cable -orange Plug Data Coming Data Coming
400721 max. 250 AC 0 20 Daisy chain cable - white Plug Data Coming Data Coming
400722 max. 250 AC 0 20 Daisy chain cable - orange Plug Data Coming Data Coming
400731 max. 250 AC 0 40 Daisy chain cable - white Plug Data Coming Data Coming
400732 max. 250 AC 0 40 Daisy chain cable - orange Plug Data Coming Data Coming
400742 max. 250 AC 0 138 Door contact - orange Plug Data Coming Data Coming
