Thermal Controls & Accessories

Thermal Controls & Accessories

Besides filter fans and cabinet heaters we offer a wide range of cabinet accessories. Thermostats and hygrostats from Seifert ensure an optimal climate inside your enclosures or cabinets.

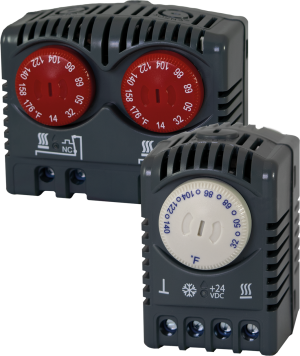

Our thermostats are available either as normally closed: NC (red disk) for regulating heaters or for alarm signals when temperature is falling below the pre-set minimum value. The contact opens when temperature is rising. They are also available as normally open: NO (blue disk) for regulating filter fans, heat exchangers, Peltier cooling units or for switching alarm signals when the pre-set temperature limit has been exceeded. The contact closes when the temperature is rising.

We offer temperature and humidity sensors for monitoring of preset parameters to ensure that failures or malfunctioning of equipment can be avoided.



For more information on our Thermal Control and Accessory products,
download the brochure
.

Click on model number to view information specific to that unit.

Model Description Setting Range Mounting (in.) Data Sheet CAD Package Manual
301005 Pre-set thermostat NC OFF 10°C/50°F
ON 0°C/32°F
DIN rail 1.38 Data Coming
301010 Pre-set thermostat NC OFF 15°C/59°F
ON 5°C/41°F
DIN rail 1.38 Data Coming
301020 Pre-set thermostat NC OFF 25°C/77°F
ON 15°C/59°F
DIN rail 1.38 Data Coming
301030 Pre-set thermostat NC OFF 35°C/95°F
ON 25°C/77°F
DIN rail 1.38 Data Coming
301040 Pre-set thermostat NC OFF 50°C/122°F
ON 40°C/104°F
DIN rail 1.38 Data Coming
301050 Pre-set thermostat NC OFF 60°C/140°F
ON 50°C/122°F
DIN rail 1.38 Data Coming
301111 Thermostat NC -10 - 80 °C Clips for DIN rail 1.38 Data Coming
301121 Thermostat NC 14 - 176 °F Clips for DIN rail 1.38 Data Coming
301210 Twin thermostat NCNC -10 - 80 °C Clips for DIN rail 1.38 Data Coming
301211 Twin thermostat NCNC 14 - 176 °F Clips for DIN rail 1.38 Data Coming
301220 Twin thermostat NCNC -10 - 80 °C Clips for DIN rail 1.38 Data Coming
301221 Twin thermostat NCNC 14 - 176 °F Clips for DIN rail 1.38 Data Coming
301230 Twin thermostat NCNC -10 - 80 °C Clips for DIN rail 1.38 Data Coming
301231 Twin thermostat NCNC 14 - 176 °F Clips for DIN rail 1.38 Data Coming
301320 Thermal f.b. thermostat 0 - 60 °C Clips for DIN rail 1.38 Data Coming
301321 Thermal f.b. thermostat 32 - 140 °F Clips for DIN rail 1.38 Data Coming
301410 Mechanical hygrostat 30% - 90% r.h. Clips for DIN rail 1.38 Data Coming
301510 Electronic thermostat 0 - 60 °C DIN rail 1.38
301511 Electronic thermostat 32 - 140 °F DIN rail 1.38
301530 External temperature sensor - DIN rail 1.38 Data Coming
301611 Electronic hygrostat 30% - 90% r.h. DIN rail 1.38 Data Coming
301630 External humidity sensor - DIN rail 1.38 Data Coming Data Coming
7800000 Peltier controller Bimetallic temperature thermostat Cooling: 32 to 140°F / Heating: 14 to 138°F DIN rail
