Air to Water Heat Exchangers

Air to Water Heat Exchangers

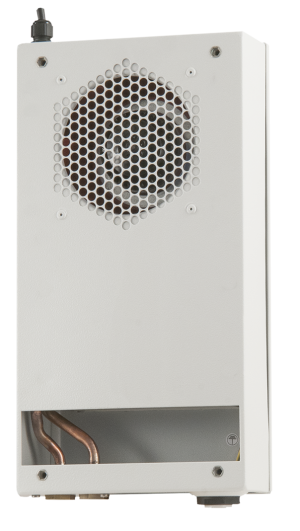

Our compact air-water heat exchangers can be used if a cold water supply is available. A typical application is the dissipation of high power losses from control cabinets. All heat exchangers are available as internal or external units, roof mounted and 19-inch rack units.

Our units are available as 19-inch plug-in models with minimal depth, as well as recessed, top and side mount. These industry proven heat exchangers are available from 2,390 BTU/hr up to 18,000 BTU/hr @95°F cabinet / 50°F water. With our modular system setup we can even reach performances of up to 135,000 BTU/hr.

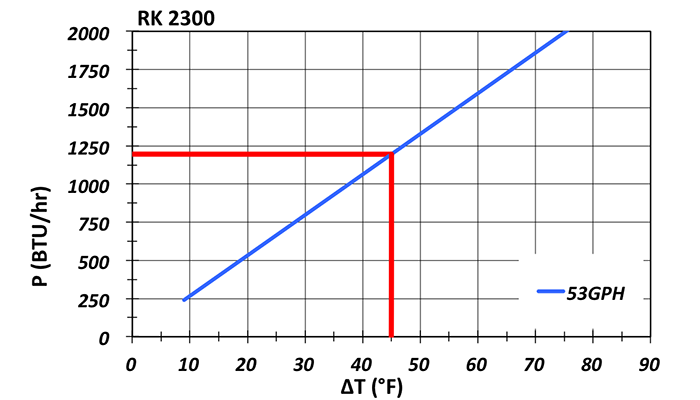

Click on model number to view that unit's performance curve.

Model BTU/hr Voltage & Phase Air Vol. Flow Unimpeded (cfm) Running Amps Operating Temperature Range (°F) Finish Dimensions (in.) (h x w x d) Data Sheet CAD Package Manual
2300010 1,090 230 AC 43/127 @ 50 Hz 50/141 @ 60 Hz 0.24 34 - 149 RAL 7035 11.93 x 6.02 x 3.31
2300110 1,090 120 AC 50/141 0.24 34 - 149 RAL 7035 11.93 x 6.02 x 3.31
2300310 1,090 24 DC 43/222 0.78 34 - 149 RAL 7035 11.93 x 6.02 x 3.31
2114003 2,220 230 AC 105/271 @ 50 Hz 117/315 @ 60Hz 0.4 34 - 162 RAL 7035 15.75 x 8.35 x 3.15
2114103 2,220 120 AC 117/333 0.8 34 - 162 RAL 7035 15.75 x 8.35 x 3.15
2114203 2,220 400 AC 105/271 @ 50 Hz117/315 @ 60Hz 0.15 34 - 162 RAL 7035 15.75 x 8.35 x 3.15
2114303 2,220 24 DC 112/330 2 34 - 162 RAL 7035 15.75 x 8.35 x 3.15
2114403 2,220 48 DC 112/330 0.8 34 - 162 RAL 7035 15.75 x 8.35 x 3.15
2114014 2,390 230 AC 105/338 @ 50 Hz117/368 @ 60 Hz 0.4 34 - 162 RAL 7035 24.88 x 8.35 x 3.15
2114114 2,390 120 AC 117/368 0.8 34 - 162 RAL 7035 24.88 x 8.35 x 3.15
2114214 2,390 400 AC 105/338 @ 50 Hz117/368 @ 60 Hz 0.15 34 - 162 RAL 7035 24.88 x 8.35 x 3.15
2114010 4,090 230 AC 105/338 @ 50 Hz117/368 @ 60 Hz 0.4 34 - 162 RAL 7035 35.08 x 8.35 x 3.15
2114110 4,090 120 AC 117/368 0.8 34 - 162 RAL 7035 35.08 x 8.35 x 3.15
2114210 4,090 400 AC 105/338 @ 50 Hz117/368 @ 60 Hz 0.15 34 - 162 RAL 7035 35.08 x 8.35 x 3.15
2116010 7,170 230 AC 158/406 @ 50 Hz176/436 @ 60 Hz 0.58 34 - 162 RAL 7035 35.08 x 8.35 x 4.13
2116110 7,170 120 AC 176/436 1.2 34 - 162 RAL 7035 35.08 x 8.35 x 4.13
2116210 7,170 400 AC 158/418 @ 50 Hz176/459 @ 60 Hz 0.4 34 - 162 RAL 7035 35.08 x 8.35 x 4.13
2125010 8,530 230 AC 294/692 @ 50 Hz311/765 @ 60 Hz 0.7/0.9 34 - 162 RAL 7035 36.85 x 10.31 x 5.77
2125110 8,530 120 AC 311/765 1.7 34 - 162 RAL 7035 36.85 x 10.31 x 5.77
2125210 8,530 400 AC 294/750 @ 50 Hz311/824 @ 60 Hz 0.27/0.33 34 - 162 RAL 7035 36.85 x 10.31 x 5.77
22000001 0 230 AC 376/506 @ 50 Hz412/544 @ 60 Hz 0.75/1.0 34 - 162 RAL 7035 9.06 x 23.62 x 19.69
2149010 16,380 230 AC 535/839 @ 50 Hz576/883 @ 60 Hz 1.3 34 - 161 RAL 7035 55.12 x 18.11 x 9.53
2149110 16,380 120 AC 576/883 2.6 34 - 161 RAL 7035 55.12 x 18.11 x 9.53
2149210 16,380 400 AC 535/839 @ 50 Hz576/883 @ 60 Hz 0.35/0.45 34 - 161 RAL 7035 55.12 x 18.11 x 9.53
