Top Mount Series

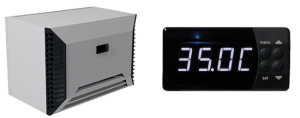

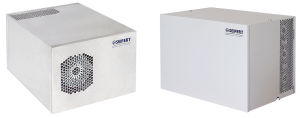

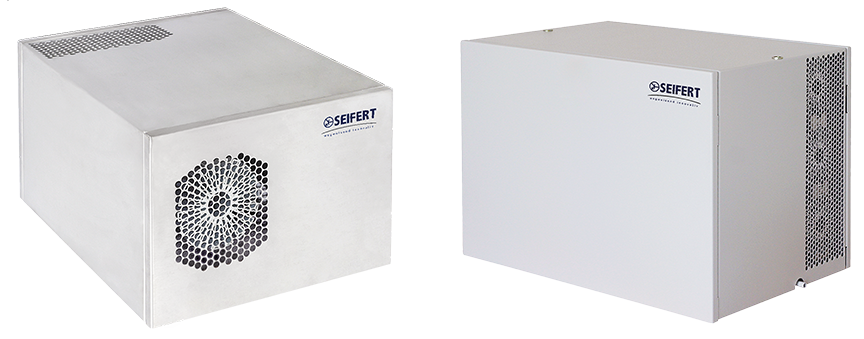

Top-Mount Air Conditioners
Our top mount enclosure air conditioners operate without any filters. This ensures virtually maintenance free reliable operation. Only high quality components are used for trouble-free operation and long life cycle.

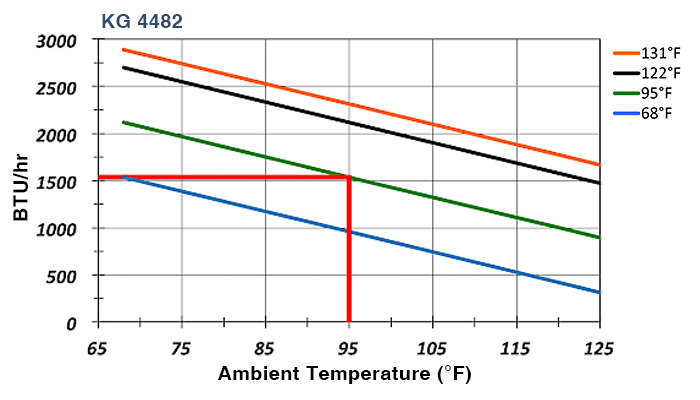

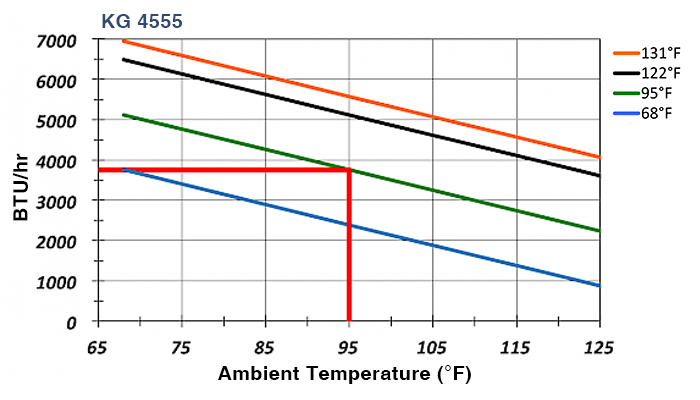

Click on model number to view that unit’s performance curve.
| Model | BTU/hr | Voltage & Phase | Air Vol. Flow - Ambient System / Unimpeded (cfm) | Air Vol. Flow - Cabinet System / Unimpeded (cfm) | Running Amps | Operating Temperature Range (°F) | Finish | Dimensions (in.) (h x w x d) | Data Sheet | CAD Package | Manual |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44820001 | 1,570 | 230 | 147 / 383 | 82 / 147 | 2.3 | 50 - 122 | RAL 7035 | 9.05 x 13 x 16.93 | |||
| 44821001 | 1,570 | 120 | 147 / 383 | 82 / 147 | 4.2 | 50 - 122 | RAL 7035 | 9.05 x 13 x 16.93 | |||
| 45550001 | 3,920 | 230 | 212 / 706 | 294 / 383 | 4.0 / 4.4 | 50 - 122 | RAL 7035 | 15.75 x 15.75 x 23.62 | |||
| 45551001 | 3,750 | 120 | 212 / 706 | 294 / 383 | 8 | 50 - 122 | RAL 7035 | 15.75 x 15.75 x 23.62 | |||
| 45552001 | 3,920 | 380 - 415 / 400 - 460 | 212 / 706 | 294 / 383 | 2.3 / 2.5 | 50 - 122 | RAL 7035 | 15.75 x 15.75 x 23.62 |
