SlimLine Series

SlimLine Series

Filterless Enclosure Air Conditioners

The SlimLine Series of enclosure air conditioners integrates several unique technologies, including maximum power to size ratio.

Seifert’s proprietary condenser design provides improved cooling performance and ensures reliability in demanding applications. The SlimLine Series manages condensate with a process that results in evaporation without consuming additional power. Condenser is specifically designed to maintain performance, without maintenance, in environments
where dirt and dust are present.

The units can be externally or recessed mounted and are only 4.5 inches deep. The SlimLine Series are the slimmest air conditioners on the market.

 For more information on our SlimLine Series of enclosure air conditioners, download the brochure.

Click a category to view accessories for SlimLine Air Conditioners:



Covers & Protection

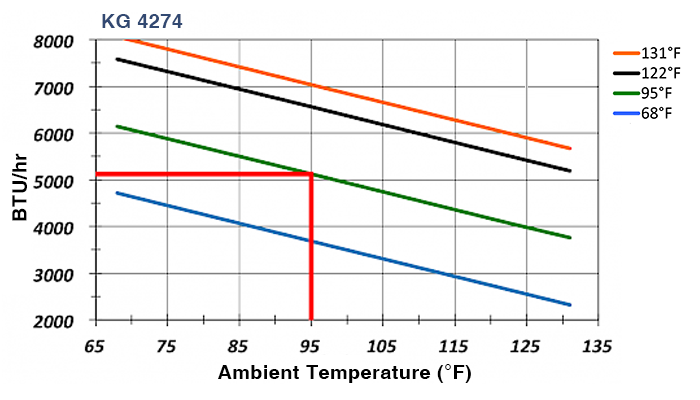

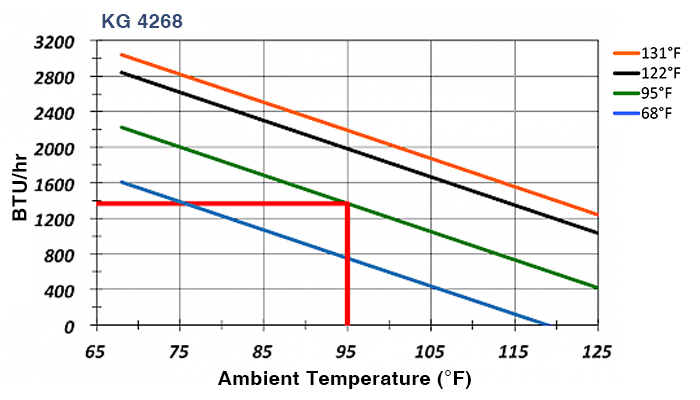

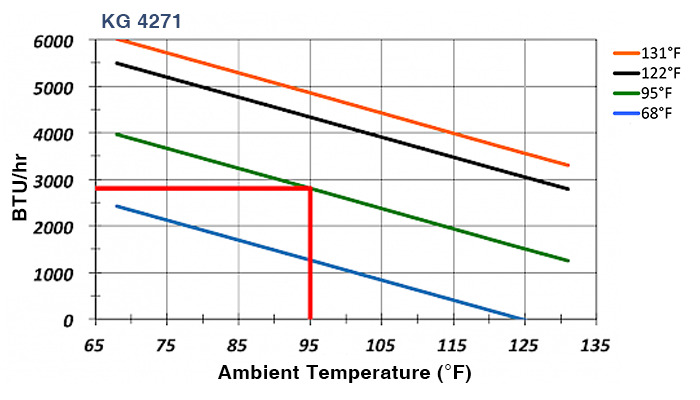

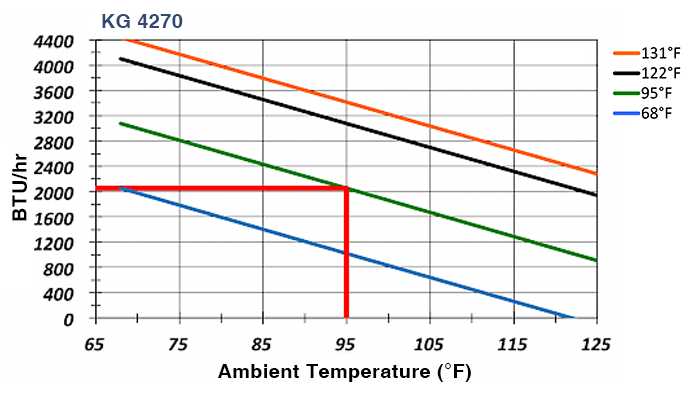

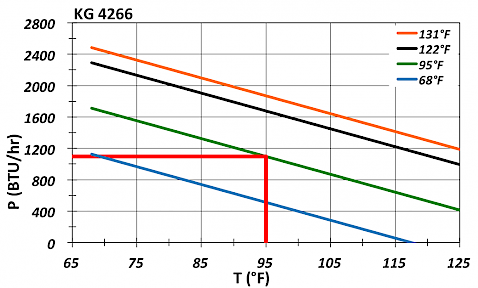

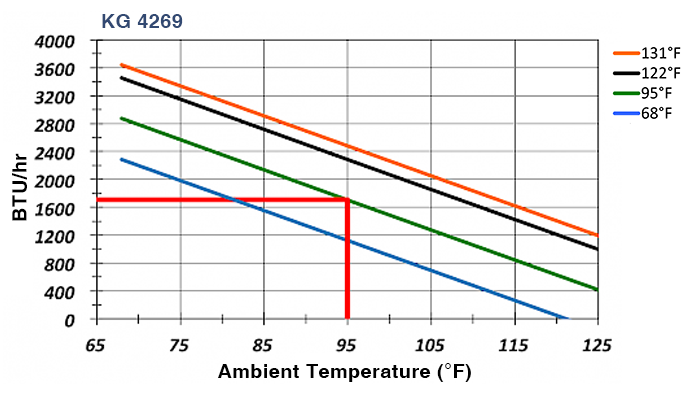

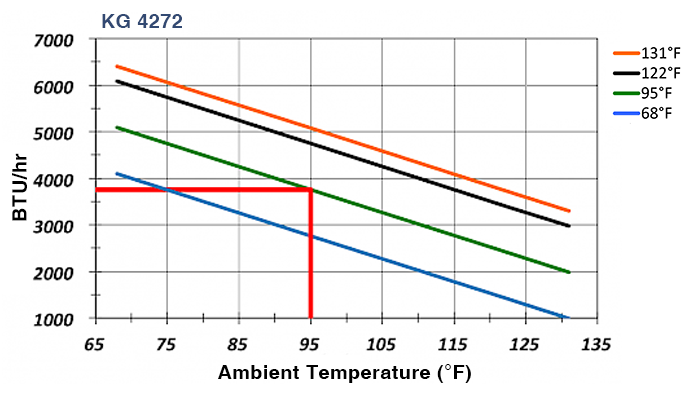

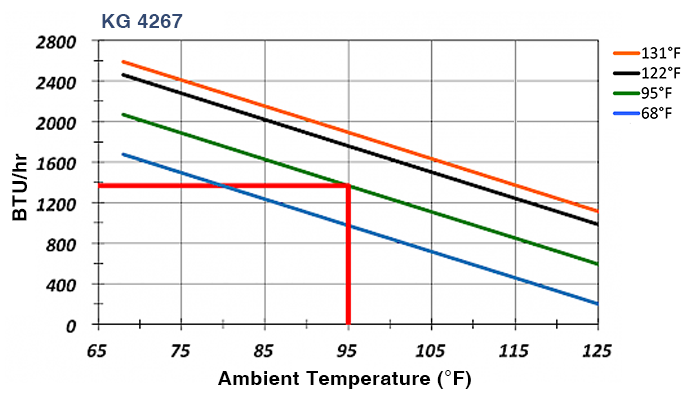

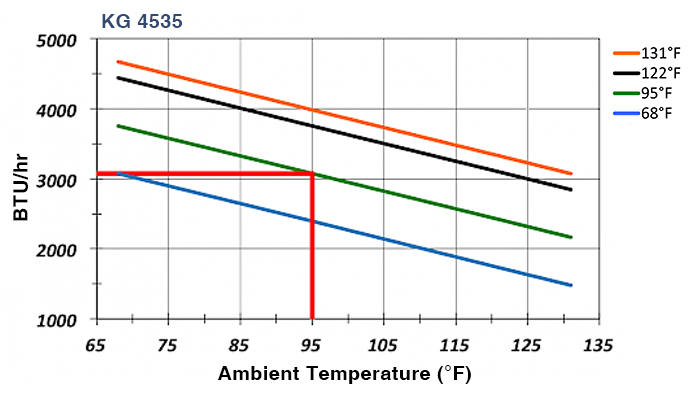

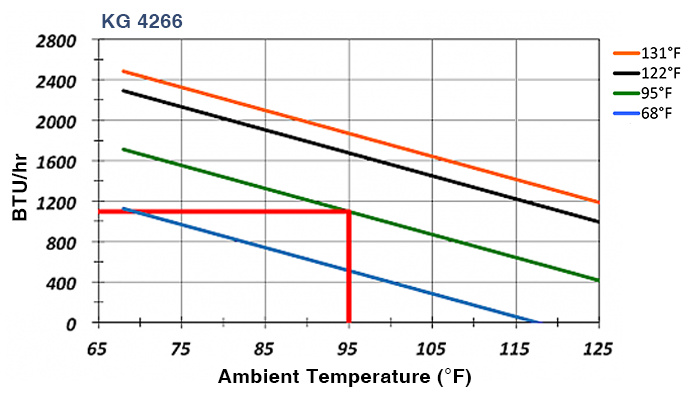

Click on model number to view that unit’s performance curve.

Model BTU/hr Voltage & Phase Running Amps Operating Temperature Range (°F) Dimensions (in.) (h x w x d) Data Sheet CAD Package Manual
42660001 1,130 230 1.5 / 1.6 50 - 122 20.5 x 10.6 x 4.3
42661001 1,130 120 3.5 50 - 122 20.5 x 10.6 x 4.3
42670001 1,450 230 1.6 / 1.5 50 - 122 13.4 x 20.5 x 4.3
42671001 1,450 120 3.2 50 - 122 13.4 x 20.5 x 4.3
42680001 1,450 230 1.6 / 1.5 50 - 122 20.5 x 12.6 x 4.3
42681001 1,450 120 3.2 50 - 122 20.5 x 12.6 x 4.3
42690001 1,770 230 2.4 / 2.6 50 - 122 23.6 x 12.6 x 4.3
42691001 1,770 120 4.4 50 - 122 23.6 x 12.6 x 4.3
42700001 2,050 230 2.3 / 2.5 50 - 122 31.89 x 15.55 x 5.71
42701001 2,050 120 5.2 50 - 122 31.89 x 15.55 x 5.71
42702001 2,050 400 / 460 2~ 1.5 50 - 122 31.89 x 15.55 x 5.71
42710001 3,020 230 3.3 / 3.7 50 - 131 38.58 x 15.55 x 5.71
42711001 3,020 120 7.2 50 - 131 38.58 x 15.55 x 5.71
42712001 3,020 380-415 3~ / 400-460 3~ 1.4 50 - 131 38.58 x 15.55 x 5.71
42720001 4,090 230 3.4 / 4.1 50 - 131 49.21 x 15.55 x 5.71
42721001 4,100 120 8 50 - 131 49.21 x 15.55 x 5.71
42722001 4,090 380-415 3~ / 400-460 3~ 1.6 / 1.5 50 - 131 49.21 x 15.55 x 5.71
42740001 5,120 230 4.3 / 5.5 50 - 131 61.02 x 15.55 x 5.71
42741001 4,780 120 8.8 50 - 131 61.02 x 15.55 x 5.71
42742001 5,120 380-415 3~ / 400-460 3~ 1.8 / 2.0 50 - 131 61.02 x 15.55 x 5.71
4535000 3,240 230 3.0 / 3.2 50 - 131 10.5 x 19 x 22.2 Data Coming
4535100 3,240 120 9 50 - 131 10.43 x 17.48 x 22.24 Data Coming
