SlimLine Vario Series

SlimLine Vario Series

Variable Speed Enclosure Cooling

The compact compressor with its variable speed, can be set to provide only the cooling power which is actually needed. The constant adjustment results in a very uniform temperature level within the cabinet and therefore stresses the electrical components and the cooling significantly less. This results in higher safety and longer life cycle. In addition, the condensation inside the cabinet is minimized.

The SlimLine Vario Series sets new performance-to-size standards which makes it particularly suitable for special applications such as battery cooling.

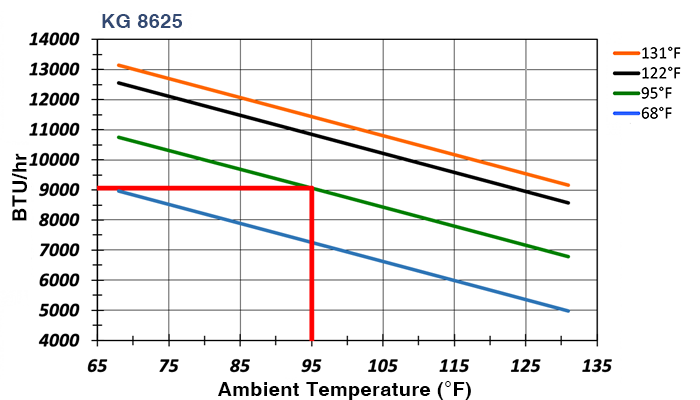

Click on model number to view that unit’s performance curve.

Model BTU/hr Voltage & Phase Running Amps Operating Temperature Range (°F) Finish Dimensions (in.) (h x w x d) Data Sheet CAD Package Manual
20250241 1,640 24* 11.5 50 - 131 RAL 7035 11.65 x 18.31 x 3.35
20250481 1,640 48* 5 50 - 131 RAL 7035 11.65 x 18.31 x 3.35
20020240 1,770 24* 9.2 50 - 131 RAL 7035 10.2 x 8 x 8.6
20020480 1,640 48* 10.2 50 - 131 RAL 7035 10.2 x 8 x 8.6
862504001 8,700 115 - 250 9.2 / 4.6 -40 - 140 RAL 7035 53.1 x 15.6 x 8.3

* This model runs on DC power, not AC, see data sheet for details.
