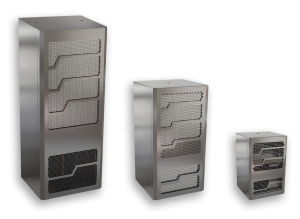

Protec Series
Enclosure Air Conditioners for Corrosive Environments
The Protec Series is uniquely designed with these user preferred features:
• Stainless Steel – AISA 316 (V4A)
• Condensate evaporation
• Coated condenser and evaporator coils
• Integrated heater
• Protected copper tubing
• RS-485 Modbus interface included
• Protected programmable controller
• Chemical and salt spray resistance
• Operating temperature from -40°F to 140°F
• Protection class IP56 / Type 3R, 4X
Every Protec Series air conditioner comes with an integrated condensate evaporation package that is designed for drip-free operation. The digital controller with built-in display is viewable and accessible from inside the cabinet. A mounting flange allows for quick and easy installation.
DOWNLOAD THE PROTEC / PROGRESSIVE SERIES BROCHURE HERE.

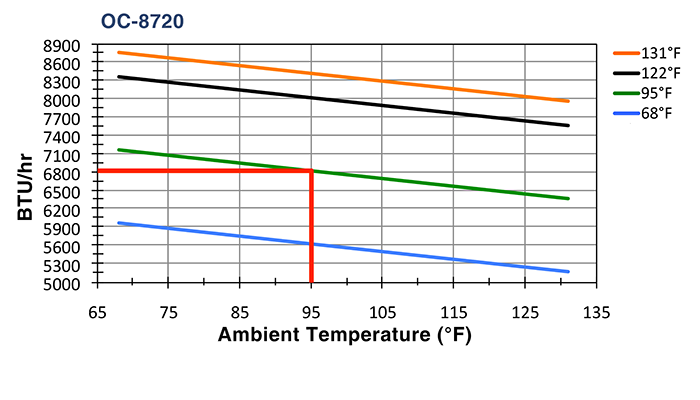

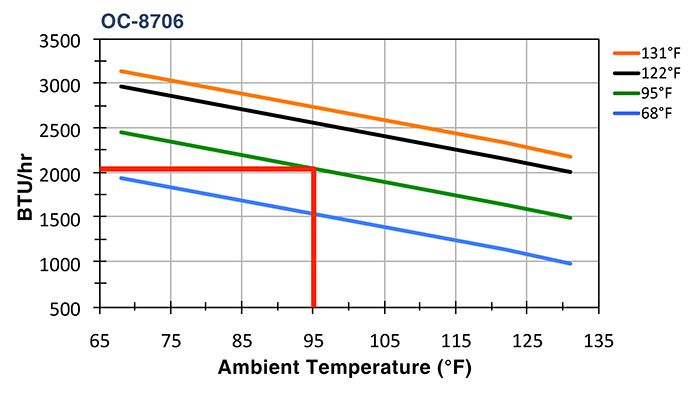

Click on model number to view that unit’s performance curve.
| Model | BTU/hr | Voltage & Phase | Heater Power (W) | Operating Temperature Range (°F) | Finish | Dimensions (in.) (h x w x d) | Data Sheet | CAD Package | Manual |
|---|---|---|---|---|---|---|---|---|---|
| 87061584USL | 2,050 | 120V, 50/60Hz | 150 W | -40F +140F | 316 Stainless Steel | 15 x 9.85 x 9.85 | |||
| 87060584USL | 2,050 | 230V, 50/60Hz | 150 W | -40F +140F | 316 Stainless Steel | 15 x 9.85 x 9.85 | |||
| 87122584USL | 4,100 | 400/460 2~ | 400 W | -40F +140F | 316 Stainless Steel | 23 x 12 x 12 | |||
| 87201584USL | 6,800 | 120V, 50/60Hz | 1000 W | -40F +140F | 316 Stainless Steel | 35 x 15.6 x 12 | |||
| 87200584USL | 6,800 | 230V, 50/60Hz | 1000 W | -40F +140F | 316 Stainless Steel | 35 x 15.6 x 12 | |||
| 87402584USL | 13,600 | 400/460 3~, 50/60Hz | 2000 W | -40F +140F | 316 Stainless Steel | 41 x 17.9 x 14.6 | |||
| 87622584USL | 21,170 | 400/460 3~ | 2000 W | -40F +140F | 316 Stainless Steel | 44.69 x 17.9 x 15.35 |
