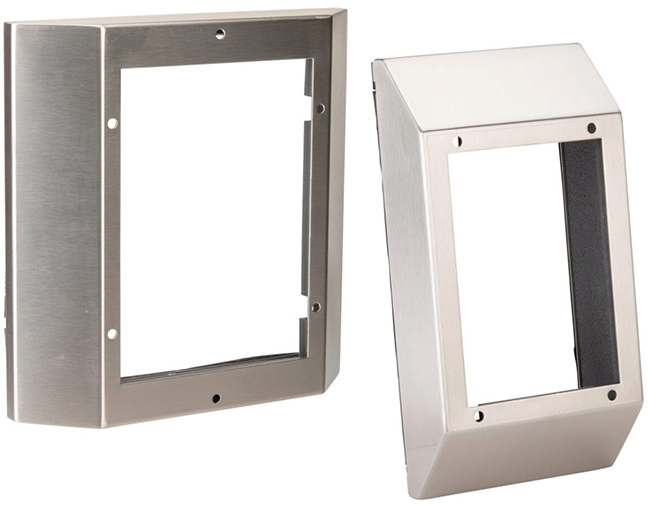

Mounting Kits
All mounting kits for Seifert Systems' Thermoelectric Coolers are included on this page.
Click on model number to view information specific to that unit.
| Model | Dimensions (in.) (h x w x d) | Description | Notes | Material | Data Sheet | CAD Package |
|---|---|---|---|---|---|---|
| 1011305 | 8.35 x 6.22 x 2.76 | Wall Mounting Kit 1011305 | for thermoelectric cooler TG 3030 | Stainless steel AISI 304 (V2A) | ||
| 1012305 | 11.89 x 6.22 x 2.56 | Wall Mounting Kit 1012305 | for thermoelectric cooler TG 3050 | Stainless steel AISI 304 (V2A) | ||
| 1013305 | 11.89 x 12.05 x 3.61 | Wall Mounting Kit 1013305 | for thermoelectric cooler TG 3102 | Stainless steel AISI 304 (V2A) | ||
| 1014305 | 19.69 x 7.38 x 3.61 | Wall Mounting Kit 1014305 | for thermoelectric coolers TG 3152 / 3200 | Stainless steel AISI 304 (V2A) | ||
| 1015305 | 13.78 x 11.02 x 1.77 | Wall Mounting Kit 1015305 | for thermoelectric cooler 6105 | Stainless steel AISI 304 (V2A) | ||
| 1016305 | 19.69 x 13.00 x 2.76 | Wall Mounting Kit 1016305 | for thermoelectric coolers TG 6155 / 6205 | Stainless steel AISI 304 (V2A) | ||
| 1017305 | 23.62 x 17.00 x 2.76 | Wall Mounting Kit 1017305 | for thermoelectric cooler TG 6405 | Stainless steel AISI 304 (V2A) | ||
| 1018305 | 38.27 x 20.24 x 2.76 | Wall Mounting Kit 1018305 | for thermoelectric cooler TG 6805 | Stainless steel AISI 304 (V2A) |
