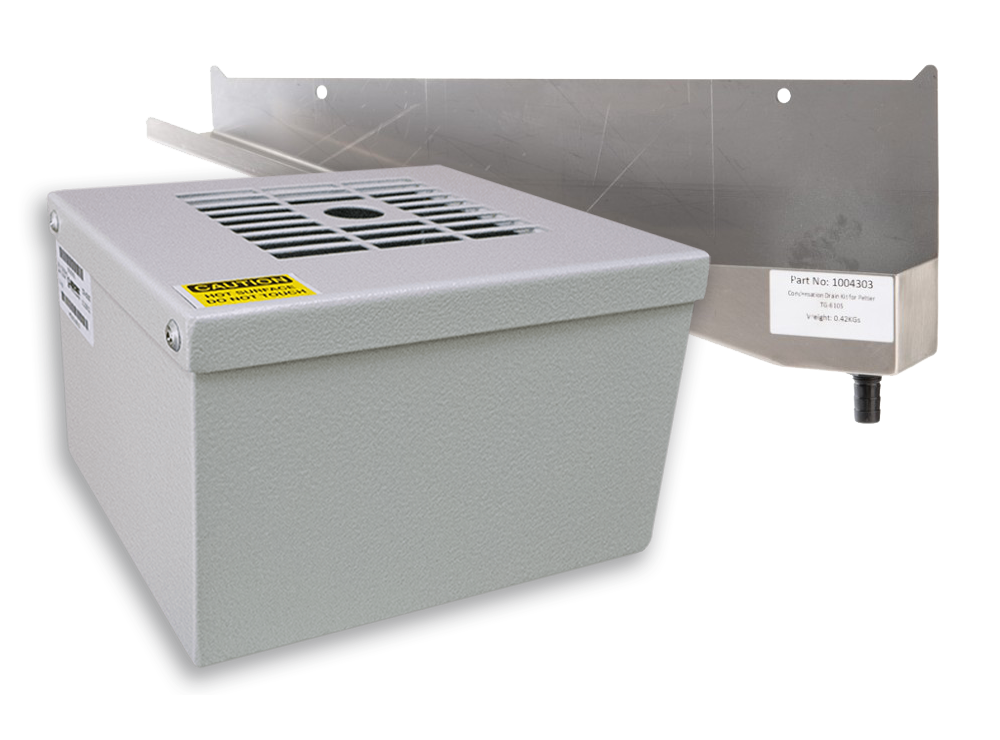

Evaporators, Condensate Kits & Door Switch
Find information and specifications on our evaporators, condensate kits and a door contact switch on this page.
Click on model number to view information specific to that unit.
| Model | Voltage & Phase | Operating Temperature Range (°F) | Dimensions (in.) (h x w x d) | Description | Notes | Material | Setting Range | Data Sheet | CAD Package | Manual |
|---|---|---|---|---|---|---|---|---|---|---|
| 1001303 | - | - | 170 x 50 x 50 | Condensate Kit 3030 | for thermoelectric coolers TG 3030 / 3050 | Stainless steel AISI 304 (V2A) | - | |||
| 1002303 | - | - | 200 x 60 x 50 | Condensate Kit 3152 | for thermoelectric coolers TG 3152 / 3200 | Stainless steel AISI 304 (V2A) | - | |||
| 1003303 | - | - | 320 x 100 x 50 | Condensate Kit 3102 | for thermoelectric coolers TG 3102 / 6155 / 6205 | Stainless steel AISI 304 (V2A) | - | |||
| 1004303 | - | - | 360 x 110 x 50 | Condensate Kit 6105 | for thermoelectric cooler TG 6105 | Stainless steel AISI 304 (V2A) | - | |||
| 1005303 | - | - | 440 x 130 x 50 | Condensate Kit 6405 | for thermoelectric cooler TG 6405 | Stainless steel AISI 304 (V2A) | - | |||
| 1006303 | - | - | 516 x 148 x 50 | Condensate Kit 6805 | for thermoelectric cooler TG 6805 | Stainless steel AISI 304 (V2A) | - | |||
| 3100001 | 24 - 400VAC @50-60Hz / 24 - 250VDC | -13 to +158 | 2.87 x 1.19 x 1.18 | Door Contact Switch | For enclosure cooling units | ABS Plastic | - | N/A |
