Economical Enclosure Cooling

Reliability and user friendliness are the best ways to describe the electronic controller being used in the ComPact air conditioners. The display indicates temperature and operating status and can be easily set and adjusted by the user via a Touch Pad.

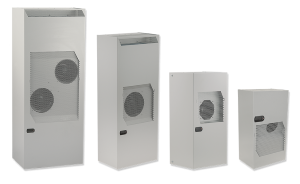

ComPact air conditioners have a cooling capacity range from 1,090 BTU/hr up to 13,660 BTU/hr with simple operation. All ComPact units have a powder coated mild steel housing (RAL 7035). For applications where hygiene and corrosion protection are required, we offer a stainless steel cover for all ComPact models. Air conditioners with a cooling capacity of 1,700 BTU/hr and above can be optionally supplied with an electric condensate evaporator. For optional filter media for the ComPact Line see the Air Conditioner Accessories page.

For more information on the ComPact Series of enclosure air conditioners, download the brochure.



Click a category to view accessories for ComPact Air Conditioners:



Filters | Filter Holders

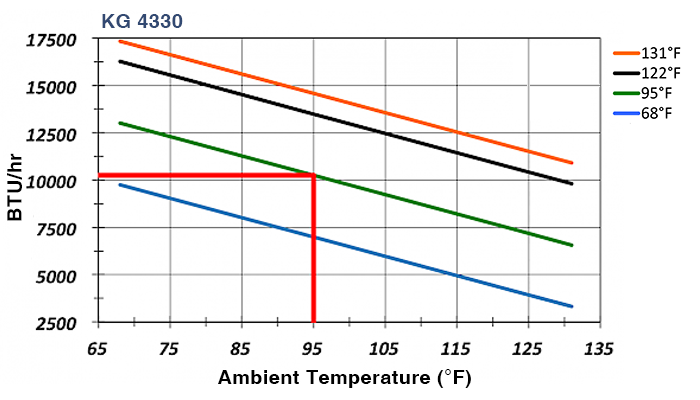

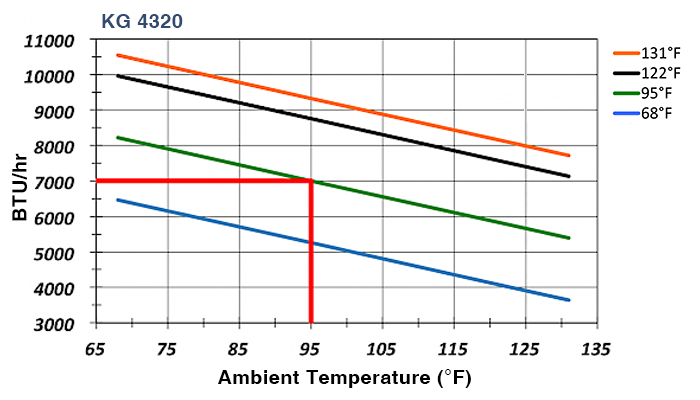

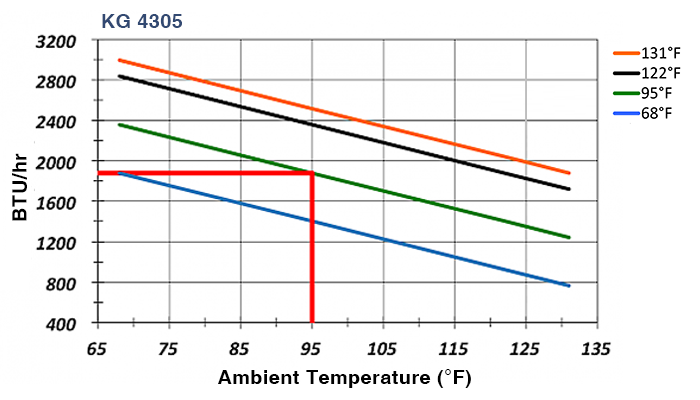

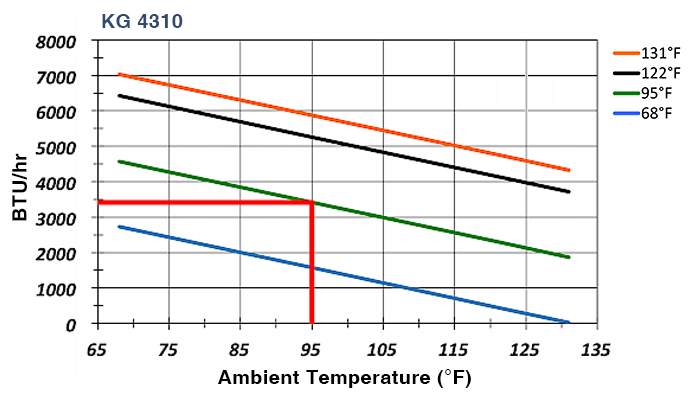

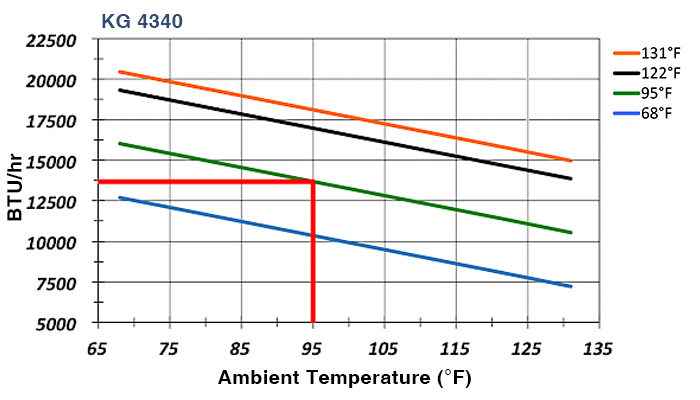

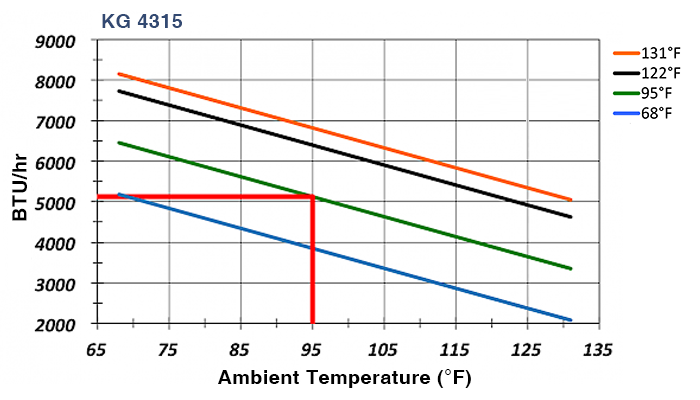

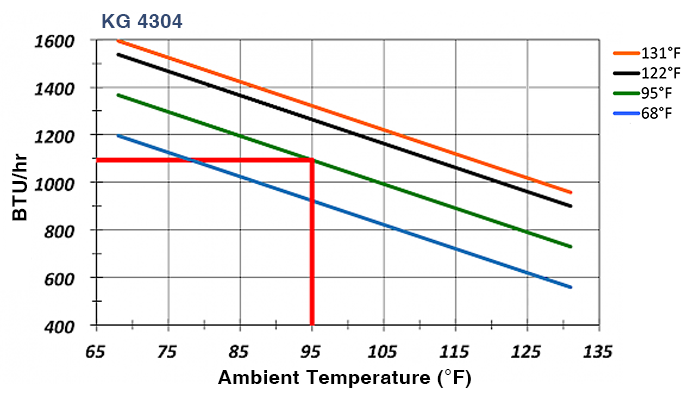

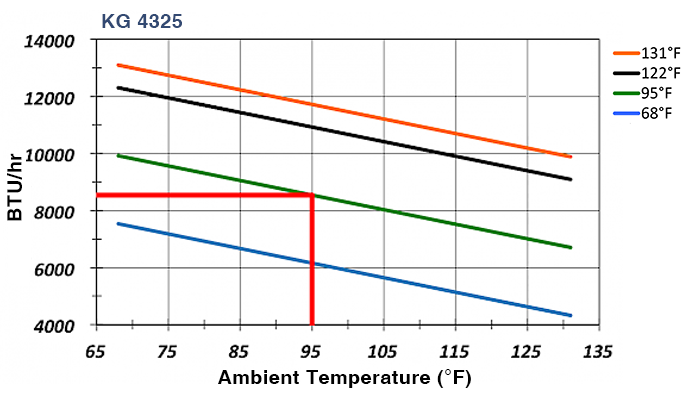

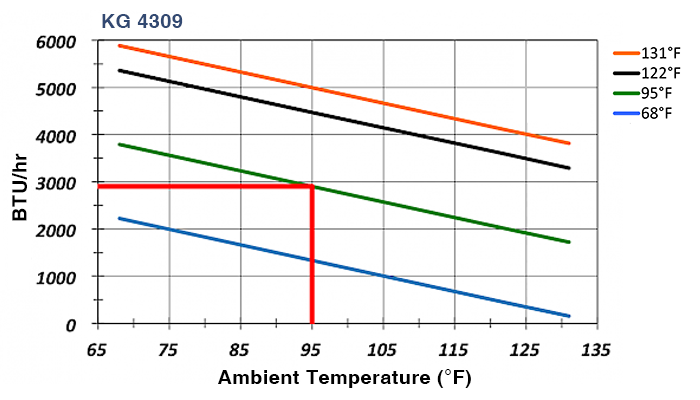

Click on model number to view that unit’s performance curve.

Model BTU/hr Voltage & Phase Running Amps Operating Temperature Range (°F) Dimensions (in.) (h x w x d) Mounting Data Sheet CAD Package Manual
43040001 1,230 230 1.9 / 2.0 50 - 131 19.69 x 11.02 x 7.87 External
43041001 1,230 120 4.4 68 - 131 19.69 x 11.02 x 7.87 External
43042001 1,230 400 / 460 2~ 1.1 / 1.0 68 - 131 19.69 x 11.02 x 7.87 External
43050001 2,120 230 2.1 68 - 131 25.6 x 12.4 x 10.2 External
43050081 2,120 230 2.1 68 - 131 28 x 14.6 x 10.2 Recessed
43051001 2,120 120 4.4 50 - 131 25.6 x 12.4 x 10.2 External
43051081 2,120 120 4.4 50 - 131 28 x 14.6 x 10.2 Recessed
43052001 2,120 400 / 460 2~ 1.4 / 1.2 50 - 131 25.6 x 12.4 x 10.2 External
43052081 2,120 400 / 460 2~ 1.4 / 1.2 50 - 131 28 x 14.6 x 10.2 Recessed
43080001 2,660 230 2.3 / 2.5 50 - 131 25.6 x 12.4 x 10.2 External
43080081 2,660 230 2.3 / 2.5 50 - 131 28 x 14.6 x 10.2 Recessed
43081001 2,660 120 5.8 50 - 131 25.6 x 12.4 x 10.2 External
43081081 2,660 120 5.8 50 - 131 28 x 14.6 x 10.2 Recessed
43082001 2,660 400 / 460 2~ 1.6 / 1.3 50 - 131 25.6 x 12.4 x 10.2 External
43082081 2,660 400 / 460 2~ 1.6 / 1.3 50 - 131 28 x 14.6 x 10.2 Recessed
43090001 3,000 230 3.0 / 3.2 50 - 131 25.6 x 12.4 x 10.2 External
43090081 3,000 230 3.0 / 3.2 50 - 131 28 x 14.6 x 10.2 Recessed
43091001 3,000 120 6.4 50 - 131 25.6 x 12.4 x 10.2 External
43091081 2,660 120 6.4 50 - 131 28 x 14.6 x 10.2 Recessed
43092001 3,000 400 / 460 2~ 2.0 / 1.8 50 - 131 25.6 x 12.4 x 10.2 External
43092081 2,660 400 / 460 2~ 2.0 / 1.8 50 - 131 28 x 14.6 x 10.2 Recessed
43100001 3,680 230 3.2 50 - 131 25.6 x 12.4 x 10.2 External
43100081 3,680 230 3.2 50 - 131 28 x 14.6 x 10.2 Recessed
43101001 3,690 120 6.7 50 - 131 25.6 x 12.4 x 10.2 External
43101081 3,690 120 6.7 50 - 131 28 x 14.6 x 10.2 Recessed
43102081 3,680 400 / 460 2~ 1.8 / 2.0 50 - 131 28 x 14.6 x 10.2 Recessed
43150001 5,560 230 4.6 / 5.1 68 - 131 38.6 x 15.5 x 10.2 External
43150081 5,560 230 4.6 / 5.1 68 - 131 41 x 17.8 x 10.6 Recessed
43151001 5,560 120 9.6 50 - 131 38.6 x 15.5 x 10.2 External
43151081 5,560 120 9.6 50 - 131 41 x 17.8 x 10.6 Recessed
43152001 5,560 400 / 460 2~ 2.9 / 2.5 50 - 131 38.6 x 15.5 x 10.2 External
43152081 5,560 400 / 460 2~ 2.9 / 2.5 50 - 131 41 x 17.8 x 10.6 Recessed
43200001 6,820 230 5.5 / 6.5 50 - 131 38.6 x 15.5 x 10.2 External
43200081 6,820 230 5.5 / 6.5 50 - 131 41 x 17.8 x 10.6 Recessed
43201001 6,830 120 11.2 50 - 131 38.6 x 15.5 x 10.2 External
43201081 6,830 120 11.2 50 - 131 41 x 17.8 x 10.6 Recessed
43202001 6,820 380 - 415 3~ / 400 - 460 3~ 3.1 / 2.7 50 - 131 38.6 x 15.5 x 10.2 External
43202081 6,820 380 - 415 3~ / 400 - 460 3~ 3.1 / 2.7 50 - 131 41 x 17.8 x 10.6 Recessed
43250001 8,560 230 3.9 / 5.3 50 - 131 48.4 x 19.7 x 13.4 External
43250081 8,560 230 3.9 / 5.3 50 - 131 51 x 21.9 x 13.4 Recessed
43251001 8,540 120 8.7 50 - 131 48.4 x 19.7 x 13.4 External
43251081 8,540 120 8.7 50 - 131 51 x 21.9 x 13.4 Recessed
43252001 8,560 400 / 460 2~ 2.9 / 2.6 50 - 131 48.4 x 19.7 x 13.4 External
43252081 8,560 400 / 460 2~ 2.9 / 2.6 50 - 131 51 x 21.9 x 13.4 Recessed
43300001 10,240 230 5.6 / 7.6 50 - 131 48.4 x 19.7 x 13.4 External
43300081 10,240 230 5.6 / 7.6 50 - 131 51 x 21.9 x 13.4 Recessed
43301001 10,240 120 15.3 50 - 131 48.4 x 19.7 x 13.4 External
43301081 10,240 120 15.3 50 - 131 51 x 21.9 x 13.4 Recessed
43302001 10,240 380 - 415 3~ / 400 - 460 3~ 2.1 / 2.3 50 - 131 48.4 x 19.7 x 13.4 External
43302081 10,240 380 - 415 3~ / 400 - 460 3~ 2.1 / 2.3 50 - 131 51 x 21.9 x 13.4 Recessed
43400001 13,650 230 8.9 / 10.2 50 - 131 48.4 x 19.7 x 13.4 External
43400081 13,650 230 8.9 / 10.2 50 - 131 51 x 21.9 x 13.4 Recessed
43402001 13,650 380 - 415 3~ / 400 - 460 3~ 2.9 / 2.7 50 - 131 48.4 x 19.7 x 13.4 External
43402081 13,650 380 - 415 3~ / 400 - 460 3~ 2.9 / 2.7 50 - 131 48.4 x 19.7 x 13.4 Recessed
